| Microwave Source | Imported professional microwave source |
|---|---|
| Power Supply | AC220V±10%，50HZ，10A/16A |
| Microwave Frequency | 2450MHz |
| Microwave Input Power | 1500W/3000W |
| Microwave Output Power | Standard 1000W, optional dual magnetron three-dimensional vertical array 2000W |
| Microwave power adjustment method | Continuously tunable |
| Material of Microwave Resonant Cavity | austenitic stainless steel |

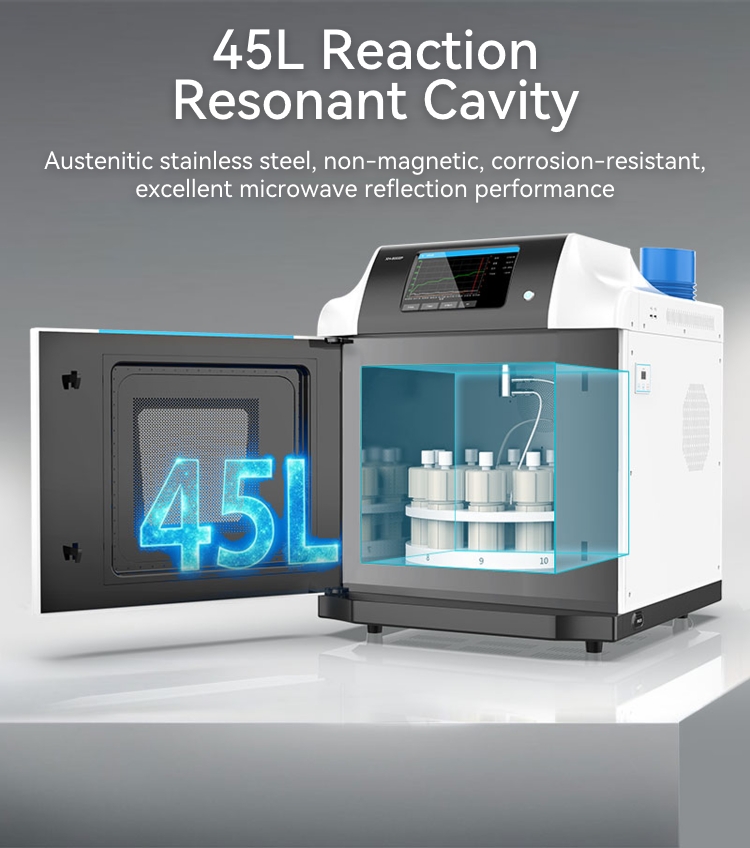

| Microwave Resonant Cavity Volume | 45L |
| Microwave Cavity Modes | multimodal |
| Continuous Working Time | ≥72h |

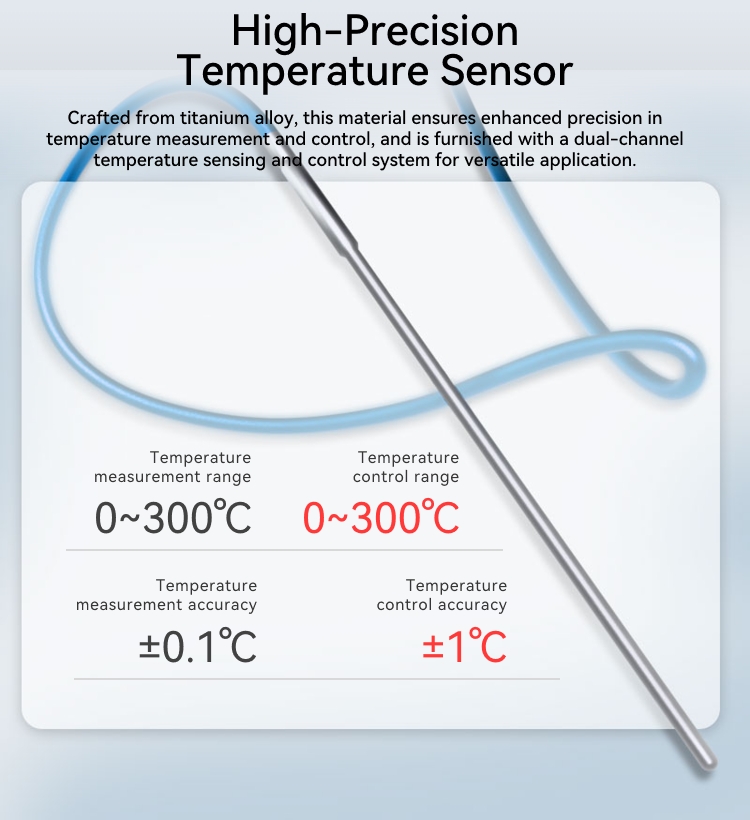

| Primary Temperature Measurement Method | PT1000 Titanium Platinum Resistors |
|---|---|
| Temperature Sensor Range | Temperature measurement range; 0～300℃ (contact), 0～500℃ (non-contact) |
| Maximum Operating Temperature | 250℃ |
| Operating Temperature Control Range | 0-250℃ |
| Temperature Control Accuracy | ±1℃ |
| Response Speed | 7ms |
| Pressure Measurement Method | piezoelectric ceramic |
|---|---|
| Pressure Sensor Range | 0～15MPa |
| Maximum Working Pressure | 5MPa |
| Working Pressure Control Range | 0-5MPa |
| Pressure Measurement Accuracy | 0.01MPa |
| Response Speed | 7ms |
| Norm | 100ml |
|---|---|
| Material | Polytetrafluoroethylene materials |
| Maximum withstand voltage | 5MPa |
| Frequency of use | Non-disposable, reusable |
| Rotary table station | 14-bit |
|---|---|
| Temperature and pressure measurement and control system | Equipped with a single-channel temperature and pressure measurement and control system specially designed for parallel systems, realizing simultaneous control of temperature and pressure. |
| Whole Tank Temperature and Pressure Measurement System | / |

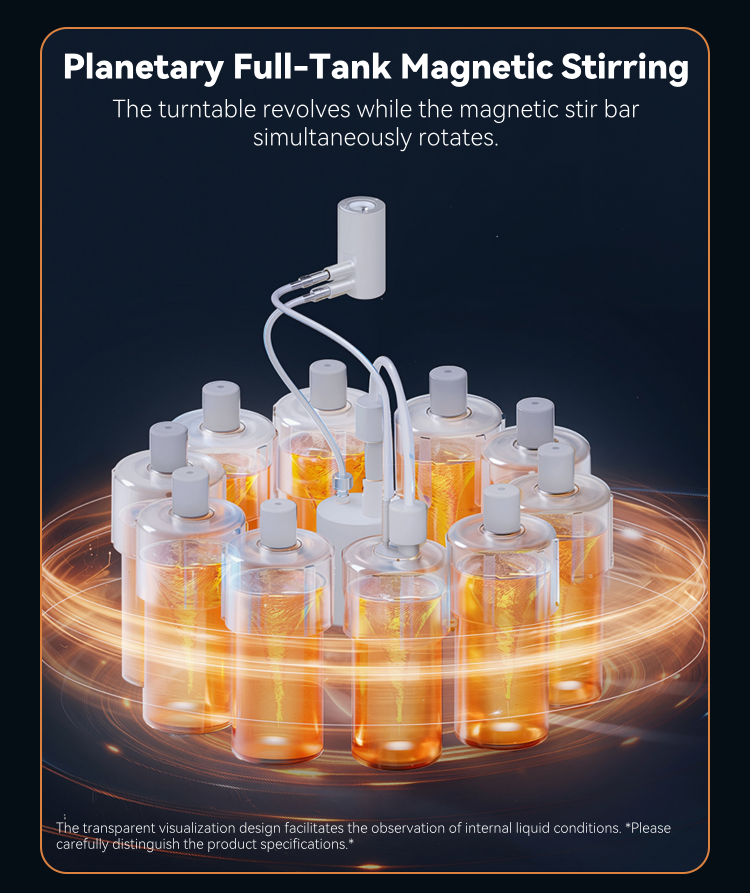

| Full tank planetary magnetic stirring | / |
| High Pressure Reaction Vessel Specification | 100ml |
| Ultrasound source | / |
|---|---|
| Ultrasonic frequency | / |
| Ultrasonic power | / |
| Ultrasonic power adjustment method | / |
| Ultrasonic probe material | / |
| Ultrasonic Probe Specifications | / |
| Ultrasonic mode | / |
| Ultrasonic high pressure reaction vessel | / |
| Fixed-position magnetic stirring | / |
|---|---|
| Mechanical stirring | / |
| Digital Mechanical Stirring | / |
| Development Platform | Android-based |
|---|---|
| Screen | 10-inch color LCD capacitive touch screen, hand control operation |
| Processing Unit | Quad-core high performance 1.2GHz ARM processor |
| Random Access Memory | 3GB |
| Memory | 32G internal memory |
| Real-time Monitoring System | 12-megapixel camera |
| USB interface | 2 |
| Temperature-Pressure Coordinated Control | Temperature/pressure dual measurement and control system, real-time monitoring of temperature/pressure changes in the reaction system, up to the set value of the instrument automatically control temperature and pressure. |
| Microwave-Ultrasonic Synergistic Control | / |
| Cooling System | air cooling |
|---|
| Wavelength | / |
|---|---|
| Power | / |
| Reaction Vessel Material | / |
| Light Intensity Detection | / |
| Pre-Injection Booster System | |
|---|---|
| Solid Phase Reaction Apparatus | |
| Photocatalytic Module | |
| Microwave Radiation Synchronized Cooling | |
| Helical Tube Flow Reactor |
