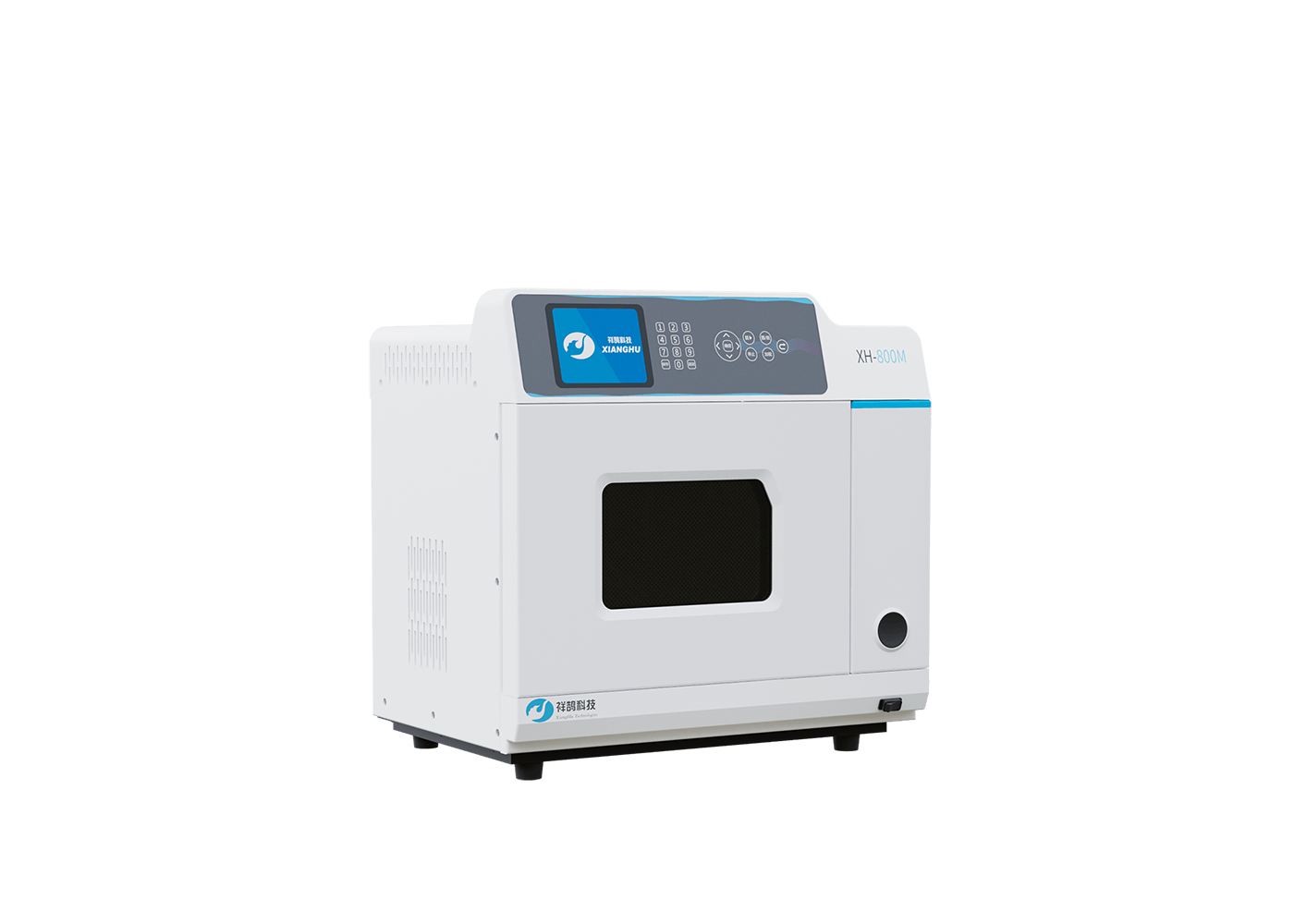

XH-800M Microwave Hydrothermal Synthesizer
Instrument functions：
Experimental function：
Experimental condition：
Experimental purpose：
The instrument adopts imported Toshiba brand professional microwave source, microwave uniform heating, rapid warming, the cavity is made of large volume austenitic stainless steel, the inner cavity is imported Teflon spraying, the thickness is up to five layers, which has the function of high temperature and corrosion resistance. It can handle 6 ultra-high-pressure large-capacity (1000ml) reactors at the same time. Special design double protection safety door, multi-layer composite one-piece mold stamping molding high-strength anti-radiation leakage door, with no deformation, shock wave resistance, preventing microwave leakage and other safety features. Temperature and pressure dual control system, LCD screen real-time display of reaction data. Adopting safety explosion-proof film to prevent damage to the tank and harm to the human body.
| Microwave Source | Imported Toshiba Microwave Source |
|---|---|
| Power Supply | AC220V±10%，50HZ，10A |
| Microwave Frequency | 2450MHz |
| Microwave Input Power | 1500W |
| Microwave Output Power | 1000W |
| Microwave power adjustment method | continuously adjustable |
| Material of Microwave Resonant Cavity | austenitic stainless steel |
| Microwave Resonant Cavity Volume | 30L |
| Microwave Cavity Modes | multimodal |
| Continuous Working Time | ≥48h |
| Primary Temperature Measurement Method | Titanium PT1000 Temperature Sensors |
|---|---|
| Temperature Sensor Range | 0-300℃ |
| Maximum Operating Temperature | 260℃ |
| Operating Temperature Control Range | 0-300℃ |
| Temperature Control Accuracy | ±1℃ |
| Response Speed | 5-10ms |
| Pressure Measurement Method | High Precision Contact Pressure Sensors |
|---|---|
| Pressure Sensor Range | 0-10MPa |
| Maximum Working Pressure | 6MPa |
| Working Pressure Control Range | 0-10MPa |
| Pressure Measurement Accuracy | 0.01MPa |
| Response Speed | 5-10ms |
| Norm | 100ml |
|---|---|
| Material | Outer tank: Polyetheretherketone resin (PEEK) Inner tank: Polytetrafluoroethylene (PTFE) |
| Maximum withstand voltage | 6MPa |
| Frequency of use | Non-disposable, reusable |
| Rotary table station | 6-bit |
|---|---|
| Temperature and pressure measurement and control system | |
| Whole Tank Temperature and Pressure Measurement System | |
| Full tank planetary magnetic stirring | |
| High Pressure Reaction Vessel Specification |
| Ultrasound source | |
|---|---|
| Ultrasonic frequency | |
| Ultrasonic power | |
| Ultrasonic power adjustment method | |
| Ultrasonic probe material | |
| Ultrasonic Probe Specifications | |
| Ultrasonic mode | |
| Ultrasonic high pressure reaction vessel |
| Fixed-position magnetic stirring | |
|---|---|
| Mechanical stirring | |
| Digital Mechanical Stirring |
| Development Platform | |
|---|---|
| Screen | |
| Processing Unit | |
| Random Access Memory | |
| Memory | |
| Real-time Monitoring System | |
| USB interface | |
| Temperature-Pressure Coordinated Control | |
| Microwave-Ultrasonic Synergistic Control |
| Cooling System | air cooling |
|---|
| Wavelength | |
|---|---|
| Power | |
| Reaction Vessel Material | |
| Light Intensity Detection |
| Pre-Injection Booster System | |
|---|---|
| Solid Phase Reaction Apparatus | |
| Photocatalytic Module | |
| Microwave Radiation Synchronized Cooling | |
| Helical Tube Flow Reactor |
